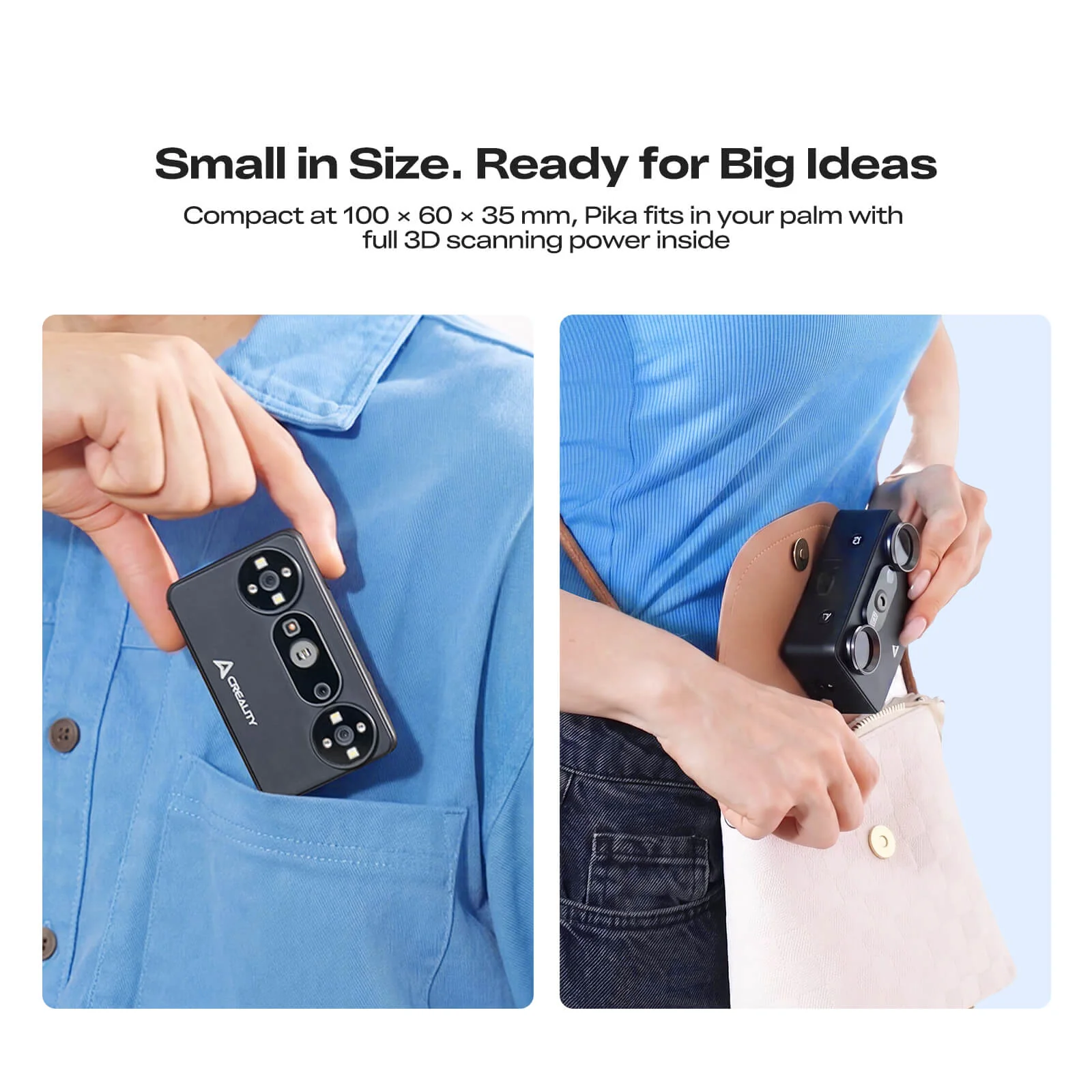

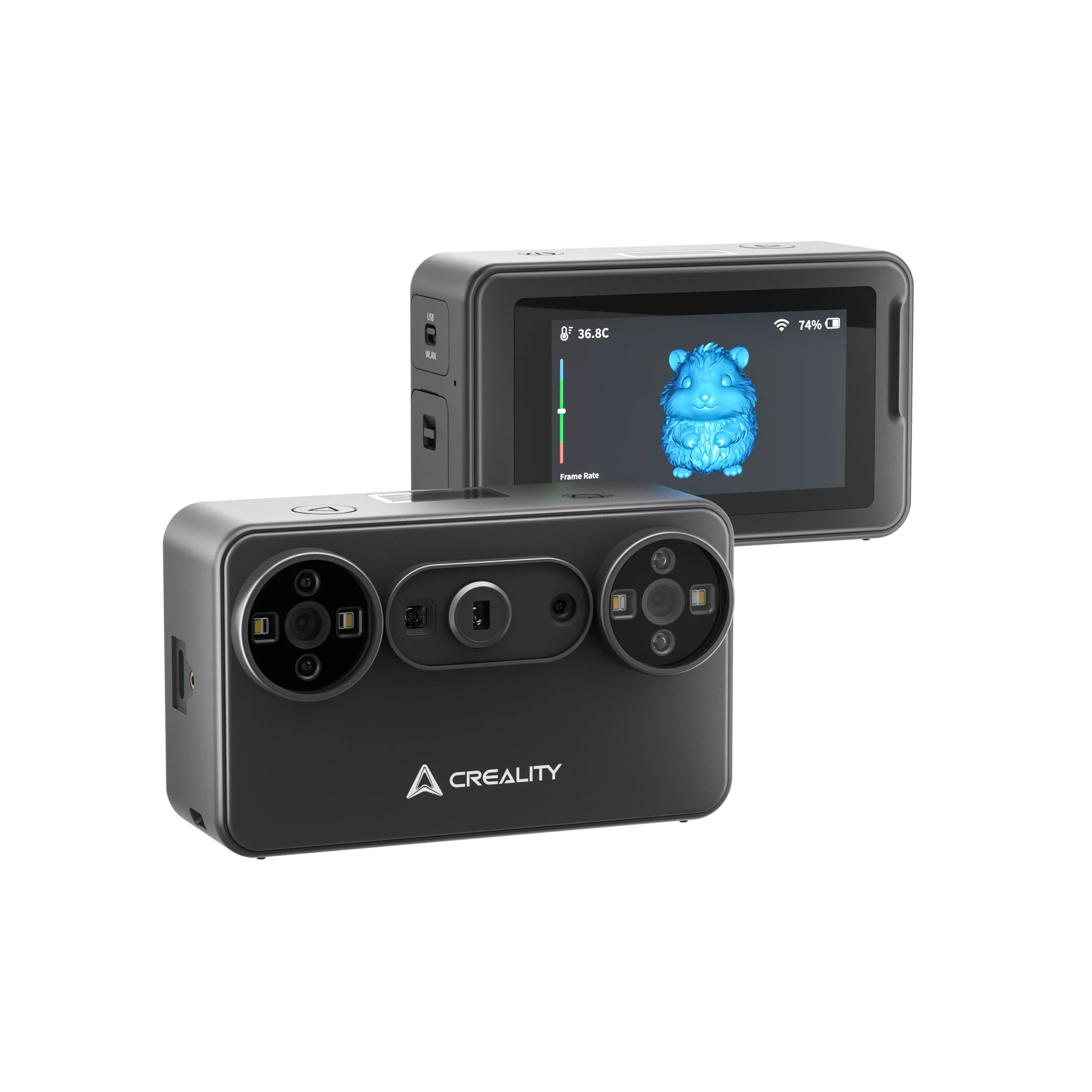

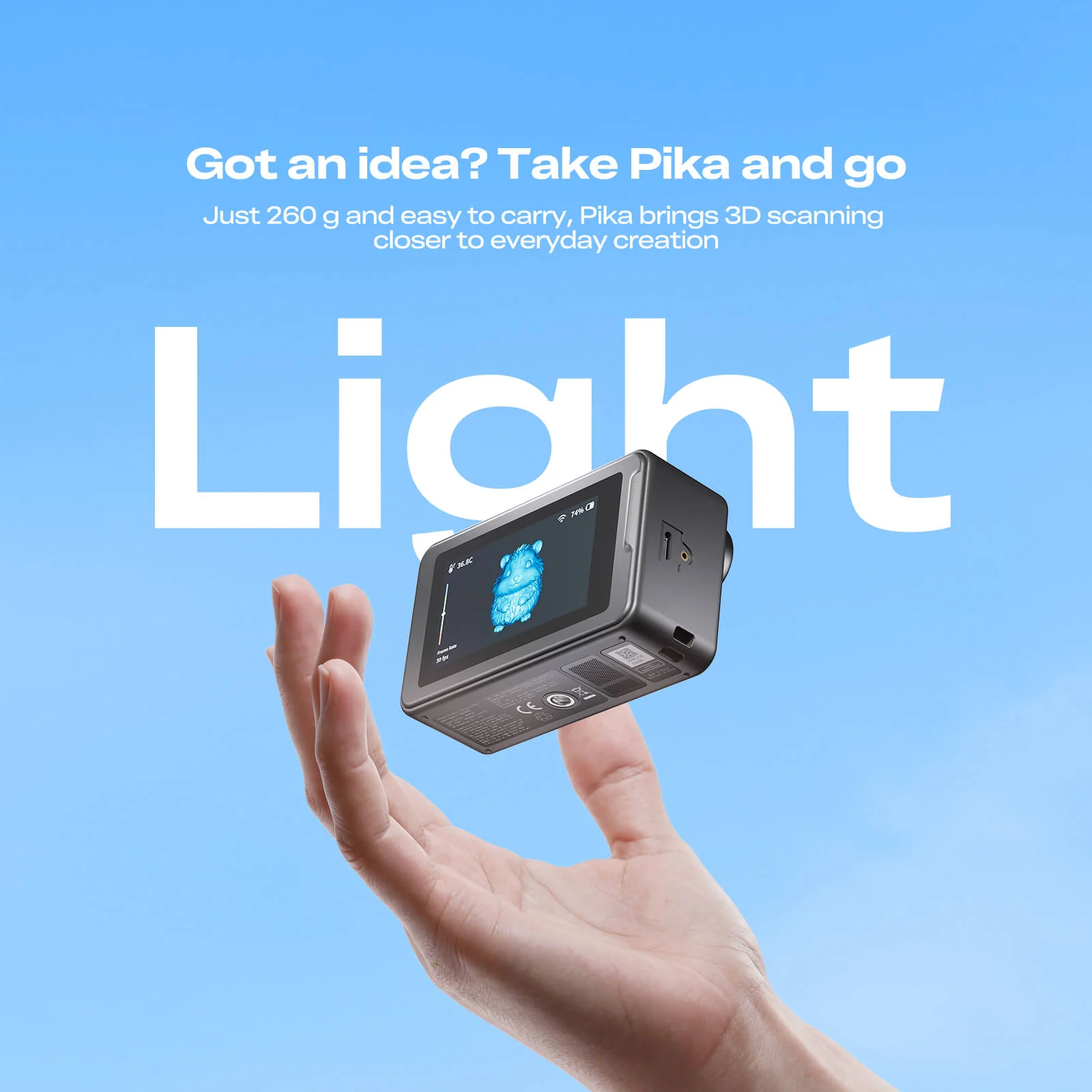

The Creality Pika is a pocket-sized 3D scanner designed to make 3D capture as easy as taking a photo. At just 260g and 100mm × 60mm × 35 mm, it fits comfortably in one hand, so you can turn real-world objects into usable 3D models wherever inspiration strikes – no bulky rig or studio setup required.
The Creality Pika combines a 7-line parallel blue laser for fine detail and precision, with NIR structured light scanning for fast, full-colour capturing of larger objects and even human subjects. Switch between them depending on what you’re scanning — from tiny miniatures and mechanical parts to full-body scans up to 2 metres. With an accuracy of up to 0.03 mm, you get clean, print-ready results for 3D printing, modelling, and digital creation.
Creality Pika Key features:
- Marker-free laser scanning (wired PC mode) – Skip the setup and start capturing real objects faster

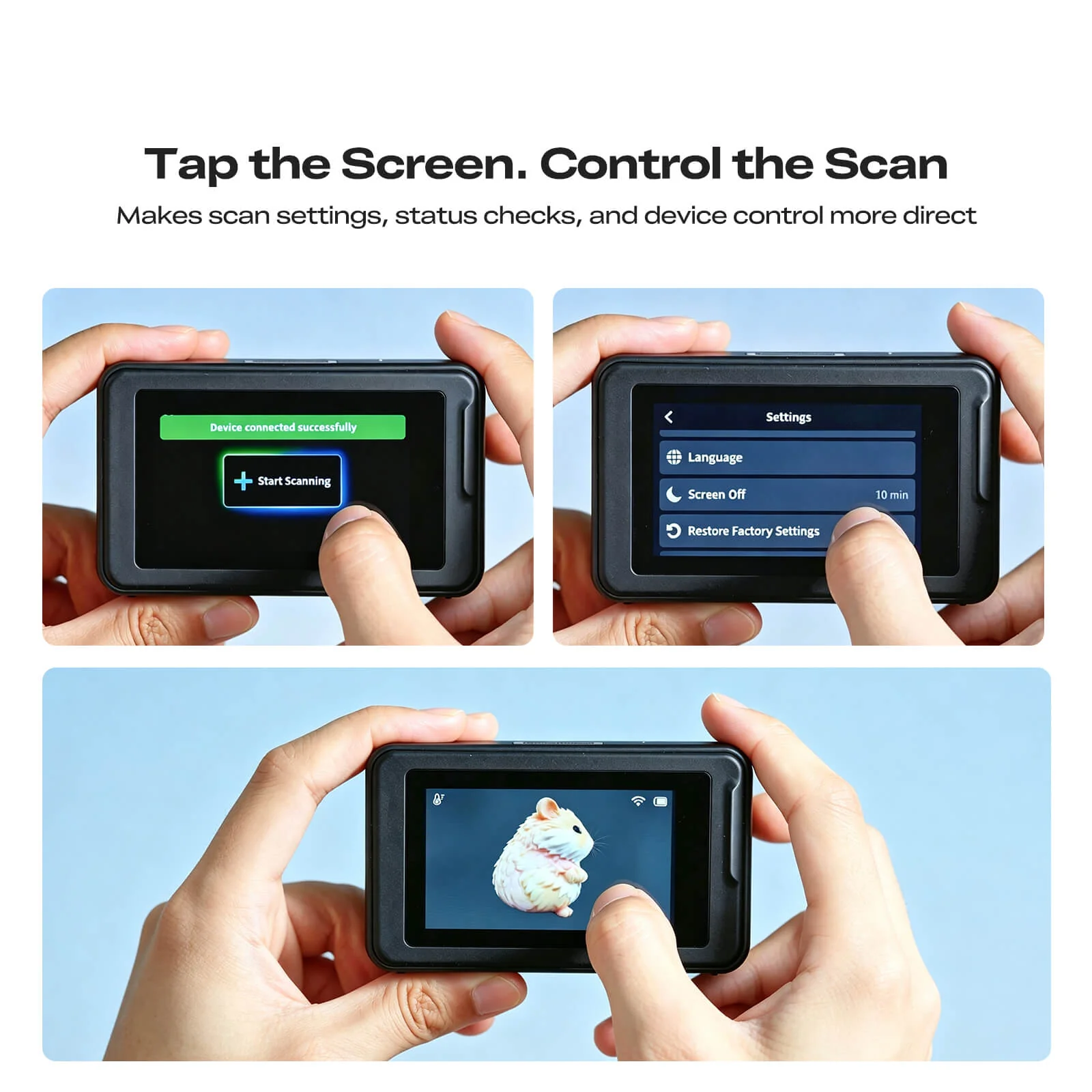

- Built-in 3-inch touchscreen (500 nits) – Adjust scan settings, check status, and control the device directly from the Creality Pika itself

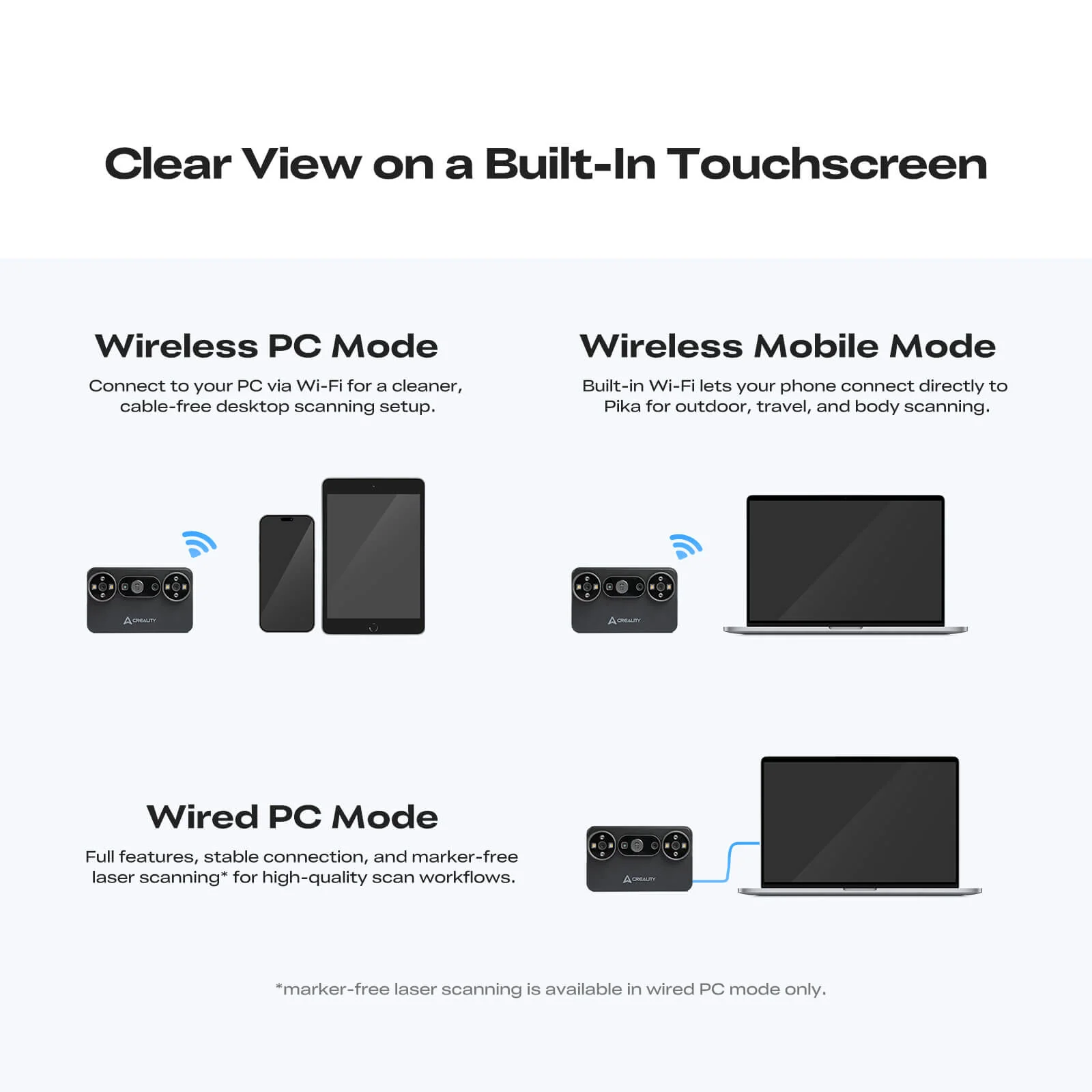

- 3 connection modes, including wireless PC mode for a clean, cable-free desktop workflow
- Up to 110 fps capture on PC for smooth, blur-free scanning on the move
- Bright-light performance – An IR filter and dual-light system keep scans stable even outdoors, in light up to 110,000 lux
- Scans black and metallic objects without needing anti-glare spray
- Swappable batteries – Two 3,350 mAh batteries included, so you can keep scanning without stopping to recharge
- AI-assisted post-processing (PC only) – Automatic retexturing, hole filling, and body completion to clean up your models after the scan
- Gaussian Splatting support – Coming soon, for a new way to visualize your 3D captures
Once you’re done, export your model in STL, OBJ, PLY, or ASC format and take it straight into your favourite 3D printing or modelling workflow, or share it with the CrealityScan community.

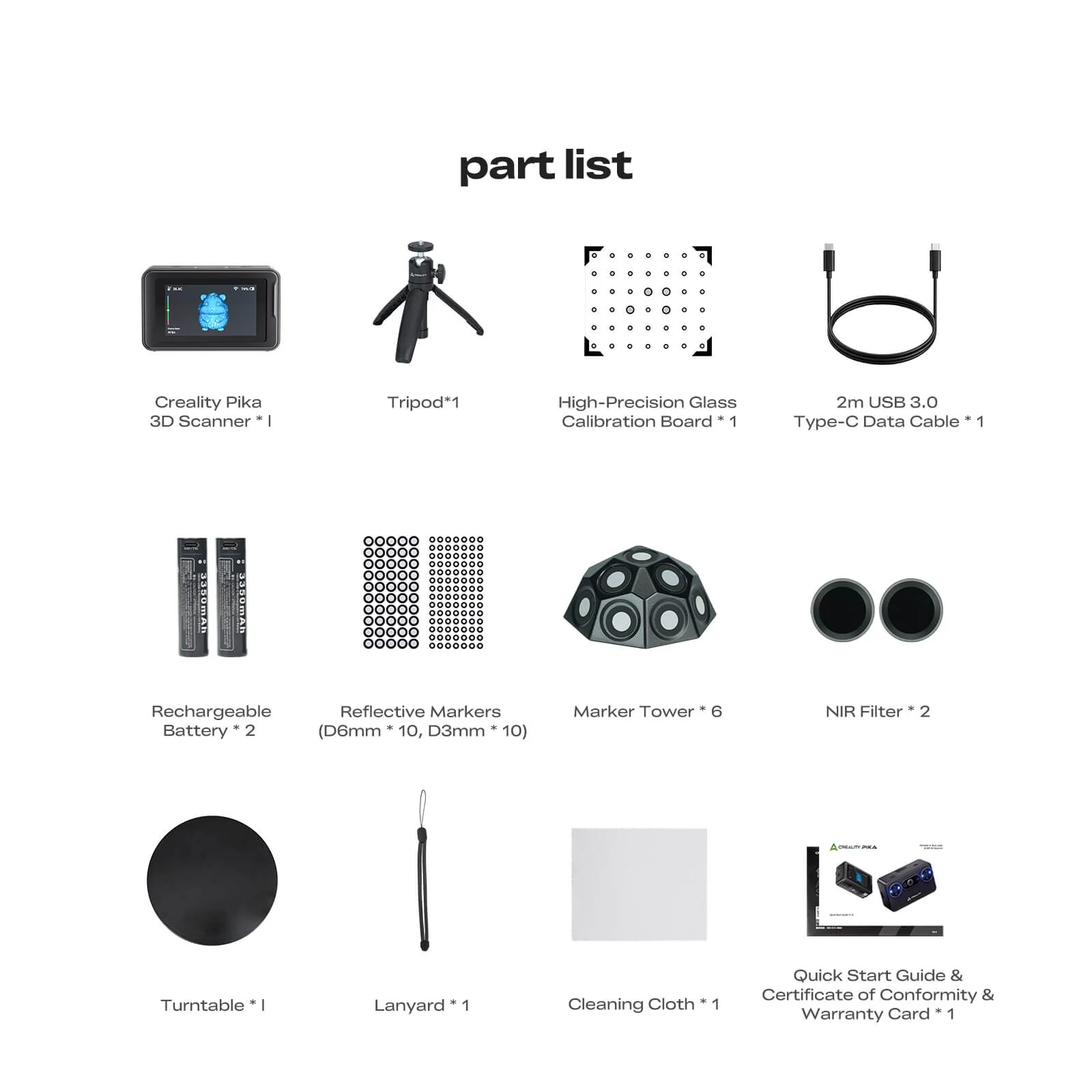

In the box: Creality Pika 3D Scanner, tripod, high-precision glass calibration board, 2m USB 3.0 Type-C cable, 2× rechargeable batteries, reflective markers, marker tower, NIR filters (×2), turntable, lanyard, cleaning cloth, and quick start guide.
Creality Pika Technical Specifications
| Spec | Blue Laser Mode | NIR Structured Light Mode |
|---|---|---|
| Accuracy* | Up to 0.03 mm | Up to 0.1 mm |
| 3D Resolution | 0.1–2 mm | 0.15–2 mm |
| Scanning Speed (Phone) | Up to 40 FPS | Up to 20 FPS |
| Scanning Speed (PC) | Up to 110 FPS | Up to 30 FPS |
| Min. Scan Volume | 10 × 10 × 10 mm | 150 × 150 × 150 mm |
| Single Capture Range | 101×107mm @160mm / 344×268mm @400mm | 144×134mm @200mm / 764×670mm @1000mm |
| Working Distance | 160–400 mm | 140–1000 mm |
| Outdoor Scanning | ≤110,000 lux | ≤80,000 lux (with filter) |
| General Spec | Detail |
|---|---|
| Color Mapping | Yes |
| Alignment Mode | Marker / Global Marker / Marker-free / Geometry / Texture |
| Supplemental Light | 4 Blue/White LEDs + 4 Infrared LEDs |
| Laser Safety | Class I (eye safe) |
| Calibration Board | High-precision glass calibration board |
| NIR Filter | Yes (removable) |
| Processor | 8-core CPU, 2.0 GHz |
| Display | 3-inch touchscreen, 500 nits peak brightness |
| Battery | 3,350 mAh (includes 1 backup battery) |
| Battery Life | Up to 70 minutes per battery |
| Interface | USB 3.0 Type-C |
| Input Power | 5V / 3A |
| Wi-Fi | Wi-Fi 6 |
| Weight | 260 g (batteries included) |
| Dimensions | 100 × 60 × 35 mm |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10–90% RH |
*Accuracy is measured under laboratory conditions; real-world results may vary depending on the environment (vibration, temperature, lighting, etc.)
Minimum & Recommended Device Requirements
| Windows | OS | CPU | GPU | RAM |
|---|---|---|---|---|
| Minimum | Windows 10/11 (64-bit) | Intel i7 Gen7 | NVIDIA graphics card, 8GB VRAM | 16GB |
| Recommended | Windows 10/11 (64-bit) | Intel i7 Gen13 or above | NVIDIA RTX 3060 or above | 32GB |
| MacOS | OS | CPU | RAM |
|---|---|---|---|
| Minimum | macOS 14 or above | Apple M3 / M4 / M5 | 32GB |
| Recommended | macOS 14 or above | Apple M3 / M4 / M5 | 32GB |
