Elegoo Saturn 4 Ultra 16K Resin 3D Printer

From jewellery designs to dental prototypes and collectables, the Elegoo Saturn 4 Ultra 16K delivers impressive results with minimal effort. With an unbeatable mix of cutting-edge technology, sophisticated design and intuitive operation, this printer fulfils the needs of professionals and creatives alike.

Ergonomic and robust design

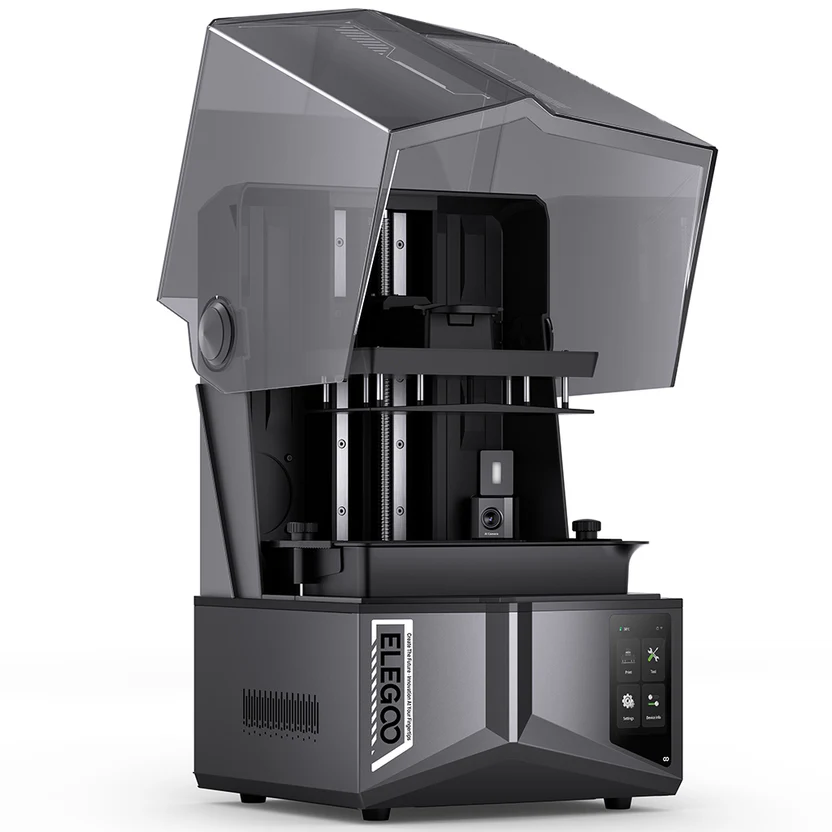

The Elegoo Saturn 4 Ultra 16K combines functionality with aesthetics. The metal housing, the flip-up cover and the dual pouring spout container guarantee user-friendly and clean handling. The drip guard and replaceable resin vat provide additional convenience.

Unrivalled print quality thanks to 16K resolution

Experience unprecedented precision with 16K monochrome LCD technology. With an XY resolution of 14 x 19 μm and a display resolution of 15120 x 6230 pixels, the Saturn 4 Ultra 16K brings even the finest details to life.

The PFA release film ensures smooth removal and lightning-fast printing; the tempered 9H protective glass effectively protects the display from scratches and damage.

Innovative technologies for maximum speed

Thanks to innovative tilt-release technology, light energy can be increased to 5 mW/cm² which reduces the curing time of the resin by 25%. The printer achieves impressive speeds of up to 150 mm/h without compromising on quality.

Large build volume for your projects

With an impressive build volume of 211mm x 118mm x 220 mm, the Elegoo Saturn 4 Ultra 16K offers enough space for ambitious printing projects. From prototypes and detailed miniatures to jewellery designs – there are no limits to your creativity.

Resin heating system for optimum printing results

Low ambient temperatures can have a negative impact on the properties of resin – the Elegoo Saturn 4 Ultra 16K has the solution. Its integrated heating tank ensures that the resin always remains at the optimum temperature and the print success rate is increased.

• Automatic temperature measurement: Precise sensors measure the temperature in real-time and show it on the display.
• Efficient heating: Even at an ambient temperature of 5°C and a humidity of 50%, the resin is heated to 25°C in just 26 minutes.

The heating tank supports both standard and special resins, giving you maximum flexibility in your choice of material!

Intelligent mechanical sensors

The Elegoo Saturn 4 Ultra 16K has sophisticated mechanical sensors that monitor the printing process and detect potential problems early on to prevent printing errors or damage.

With the low resin alarm, the printer monitors the resin level in real-time. If the fill level is below the MIN line or exceeds the MAX line, an alarm is triggered. Before printing, the device calculates the required amount of resin. If there is insufficient resin, you will be prompted to top it up. You can either cancel the print, add resin and start again or top up the resin during the print. If the required amount of resin exceeds the maximum capacity of the tank, you will also be notified during the print.

Residue detection: If the Z-axis detects residue during shutdown, you will receive a warning. In this case, troubleshooting is required to prevent damage to the LCD surface.

Automatic levelling monitoring: The printer automatically levels itself when the build platform is lowered. If the automatic levelling fails, you will be prompted to readjust manually.

Resin level monitoring: If the resin level does not reach the minimum limit or no resin is detected, a message appears to cancel the print and rectify the cause.

Intelligent features of the Elegoo Saturn 4 Ultra 16K

• Automatic levelling: Ready to go out of the box, without manual settings,
• WLAN file transfer: Transfer print files wirelessly at up to 10 Mbps over 2.4G and 5G networks,
• Cluster printing: Control multiple printers centrally and efficiently,
• AI Camera Intelligent Detection with Empty Build Plate Detection and Warp Detection,
• Real-time monitoring & time-lapse photography: Watch the progress of your print live and record the process in fascinating time-lapse videos
• High-temperature protection: The printer automatically pauses when the UV light source reaches over 80 °C and resumes printing after cooling down.
• Power-Loss-Resume-Printing: You can continue printing seamlessly after power failures,
• Device self-check: Automatic reminders for maintenance tasks such as replacing the release film ensure a long service life,
• Laser-engraved build plate for excellent adhesion and effortless removal of print objects,
• OTA firmware updates keep your device always up to date.

Elegoo Saturn 4 Ultra 16K Technical specifications:
