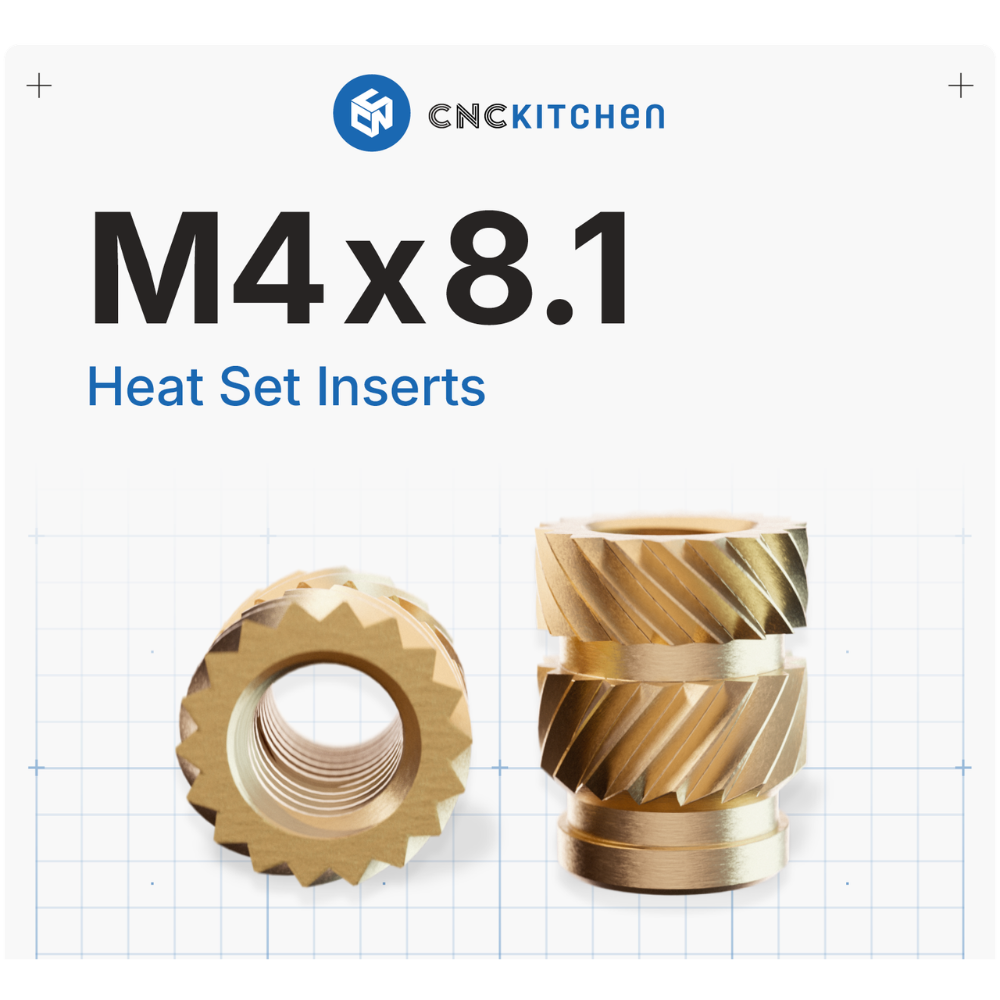

This M4 x 8.1mm heat set insert from CNC Kitchen is perfect for adding durable, reusable metal threads to your 3D printed parts. CNC Kitchen heat set inserts are made from high-quality, lead-free and cadmium-free brass, which are engineered specifically for embedding into thermoplastics like PLA, PETG, ABS, and other common filaments – giving you a safer, cleaner material to work with compared to lower-grade alloys.
The M4 x 8.1mm heat set insert from CNC Kitchen is sold as a single unit. This allows you the freedom to order exactly how many heat set inserts you would like!
Each M4 x 8.1mm heat set insert features a double-knurled outer surface for maximum resistance to pull-out and rotation forces once installed, plus a tapered pilot end that makes alignment and insertion quick and accurate. Simply heat the insert with a soldering iron (roughly 10–20 °C above your printing temperature) and press it into a pre-sized hole – it melts cleanly into the plastic and fuses in place as it cools, creating a strong, low-friction metal thread that can be screwed and unscrewed repeatedly without wearing out the surrounding material.
Compared to printing threads directly into plastic or repeatedly driving self-tapping screws, the M4 x 8.1mm heat set insert gives you:
- High-quality brass – Premium-grade material that is lead-free and cadmium-free.
- Enhanced durability – Reinforced threaded holes that dramatically increase the strength and lifespan of the connection.
- Reliable assembly/disassembly – Parts can be screwed together and taken apart many times without wearing out.
- Professional finish – A clean and flush look for both DIY and commercial projects.
- Versatile installation – Melt into thermoplastics with a soldering iron or bond into resin prints with adhesive.
Whether you’re building enclosures, brackets, RC parts, or any project that needs a secure, reusable fastening point, CNC Kitchen heat set inserts deliver a professional-grade result every time.
